| 起源の場所: | 中国 | ブランド名: | NBSANMINSE |
|---|---|---|---|
| モデル番号: | SMF19 |
|
詳細情報 |
|||
| モデル: | SMF19 | サイズ: | 1PC 2PCS 5PCS 1PCS 2PCS 5PCS 1PCS 1PCS 2PCS 5PCS 1PCS 1PCS 1PCS 2PCS 5PCS 1PCS 1PCS 1PCS 1PCS 1PCS 1 |
|---|---|---|---|
| 証明: | ce | スイッチタイプ: | 圧力スイッチ |
| 材料: | アルミ合金 | 糸: | GNPTについて |
| ハイライト: | 空気圧縮ポンプ圧換,1/4 G NPT 圧力スイッチ,信頼性の高い制御圧力スイッチ |
||
製品の説明
Ex : ON :1Bar OFF:2Bar =NC
ON :2Bar OFF:1Bar =NO
ON :-0.9Bar OFF:-0.65Bar =NO
ON :-0.65Bar OFF:-0.9Bar =NC

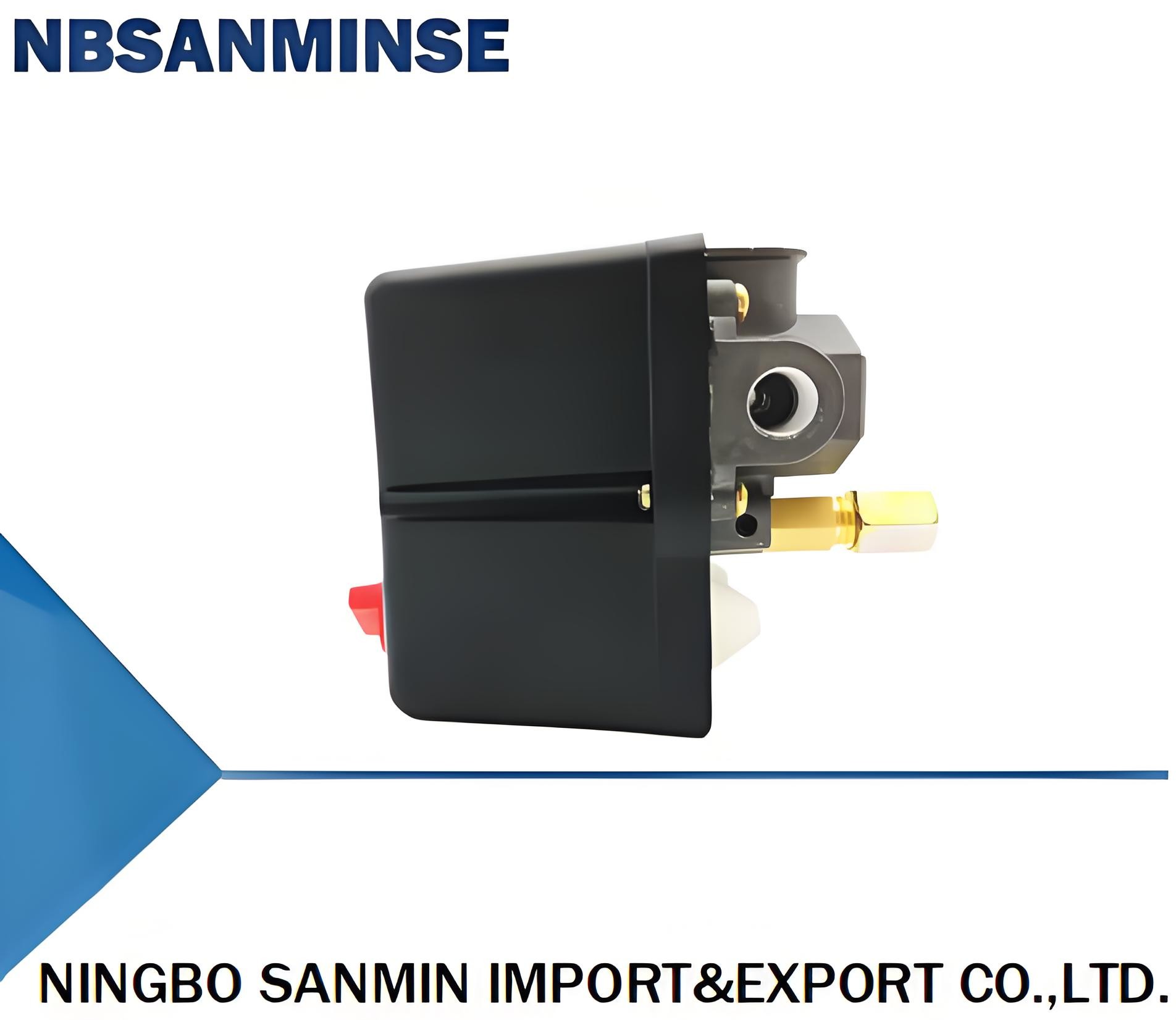

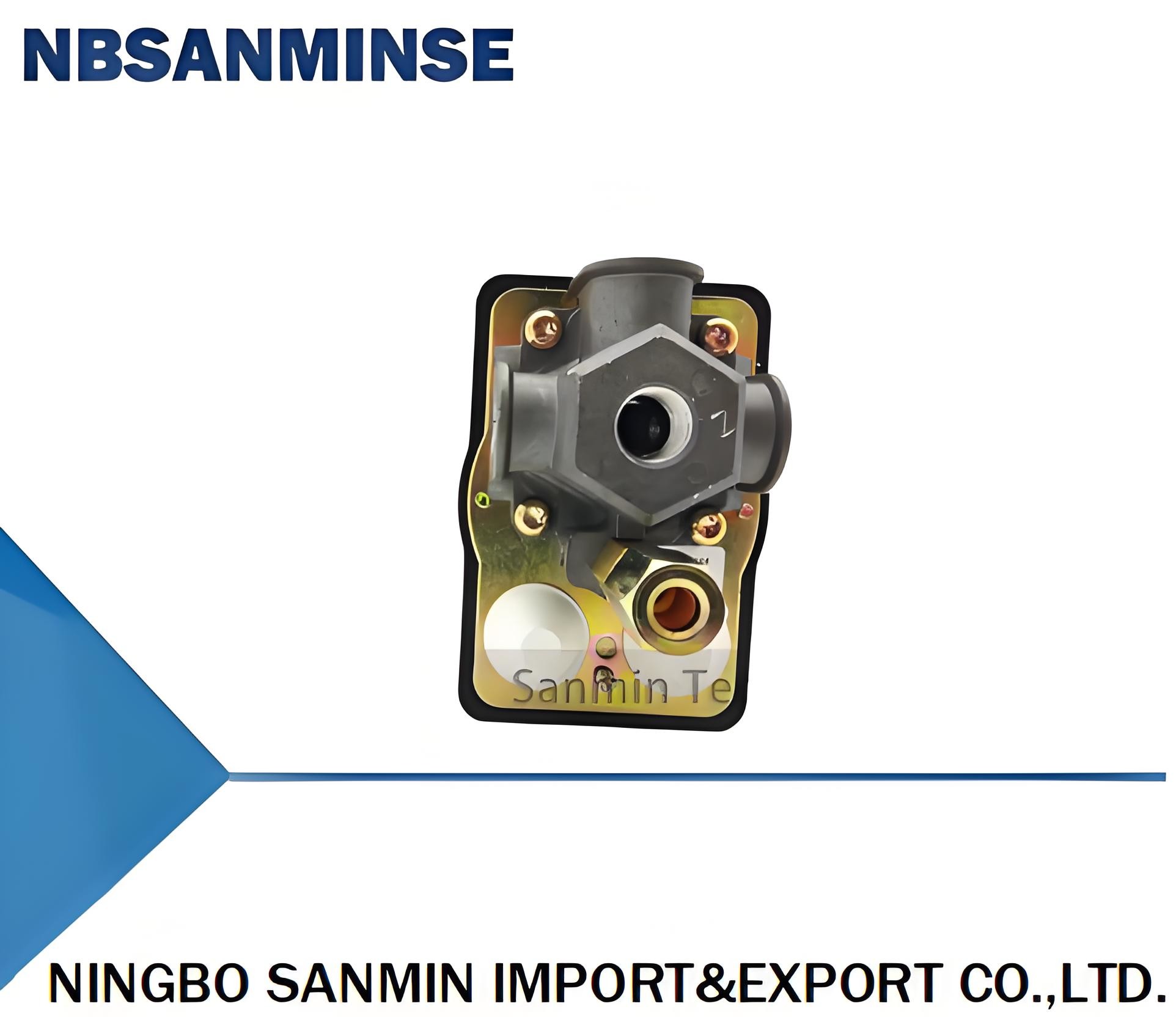

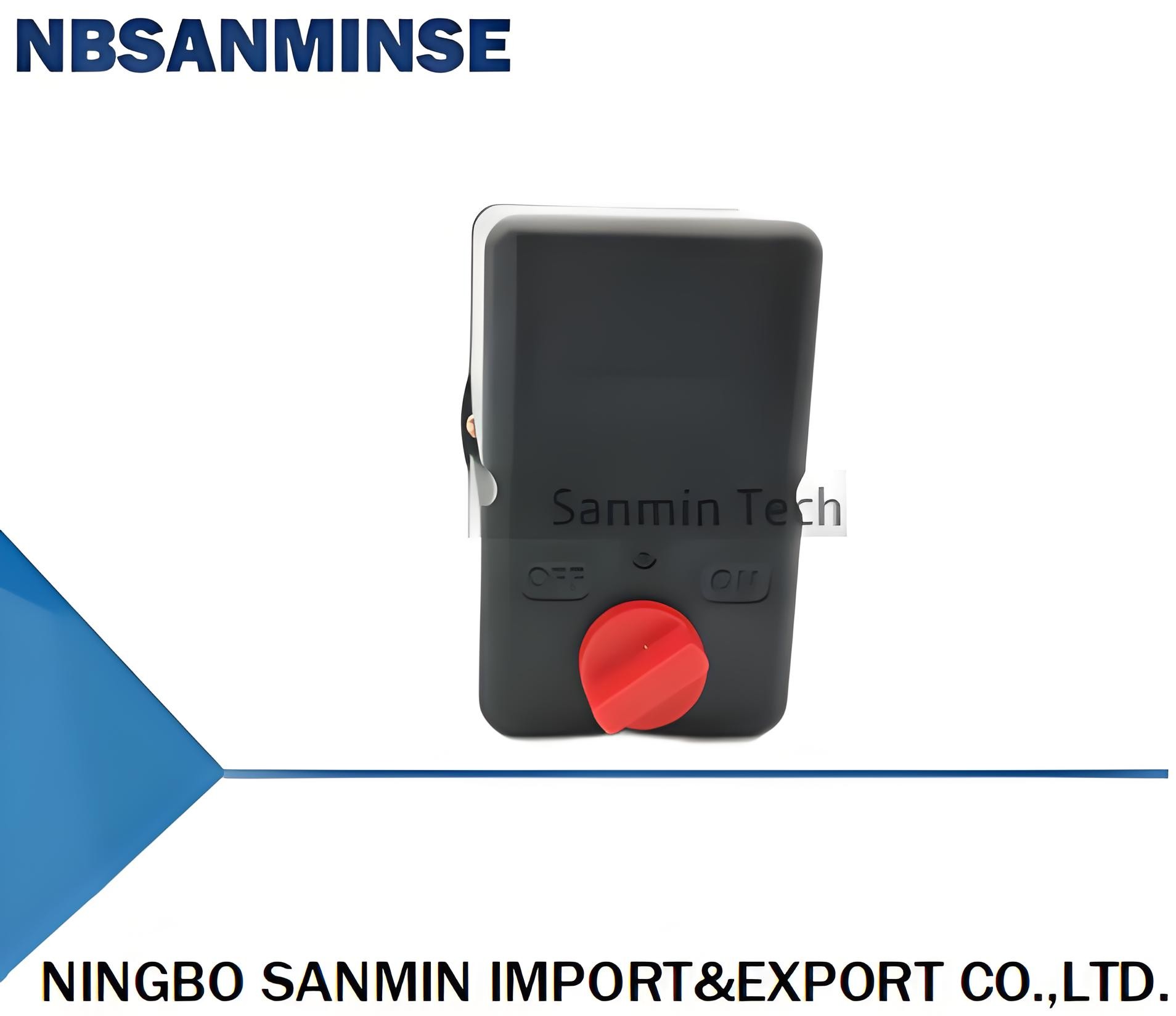

SMF19 pressure switches can also be used to regulate the tank pressure between two preset values on onephase electrically driven air compressors. They are available with an unloader valve, which prevents compressors from starting under load, and it is available with an On-Off knob for manual cut off the compressor.
|
MODEL
|
Media
|
Unloader
Valve
|
Operating
Pressure Range(bar)
|
Factory Setting
(bar)
|
Differential
(bar)
|
Electrical Rating
|
Contact Arrangement
|
|
SMF19
|
Air
|
with
|
1-6
|
1-3
|
2-4
|
16A ,25/250VAC
|
NC
|
|
2-11
|
1.4-3.5
|
6-8
|
|||||
|
5-14
|
1.8-4.0
|
8-10
|
