商品の詳細:
|
| 流動臨時雇用者: | 0～80℃ | DN: | Φ9 |
|---|---|---|---|
| 電圧: | DC24V | 力: | 4.5-5W |

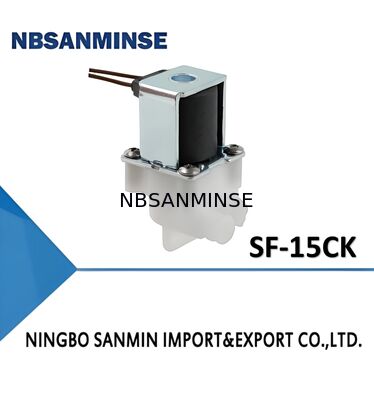

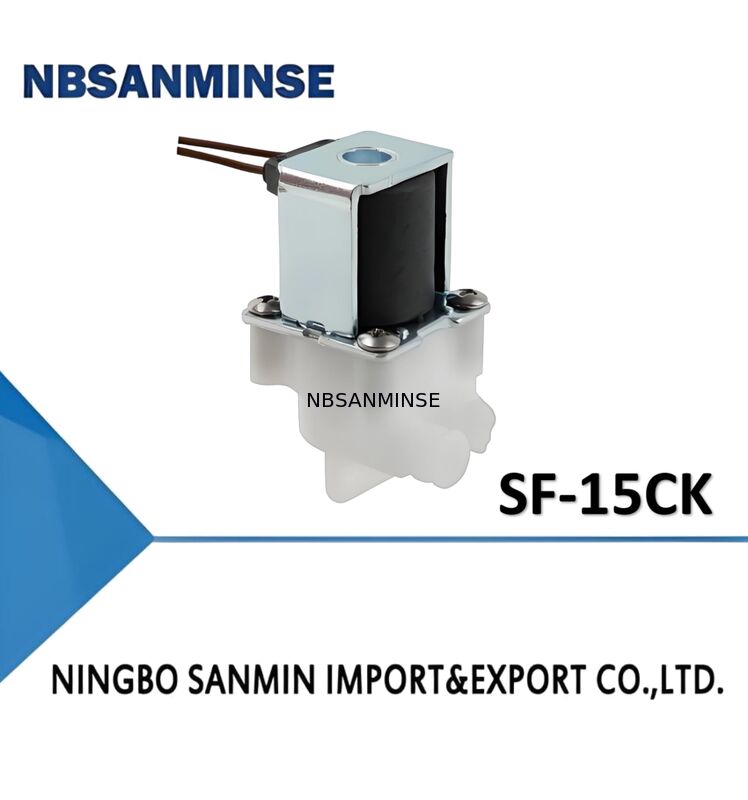

SF-15CK(Technical Parameters):
| Form |
Normally Open Valve |
| Pressure | 0.2-8bar |
| Working medium | water |
| Fluid Temperature | 0-80℃ |
| Amb. Temperature | 0-50℃ |
| Power | 4.5-5W |
| DN | Φ11 |
| Voltage |
DC12V, DC24V, DC36V, |
| Connection | (Cannula) |
(2/2way valveN.O.)
SF-15CK001(Technical Parameters):
| Form |
Normally Open Water Solenoid Valve (6.9bar-300ml/min-1500ml/min) |
| Pressure | 0.2-8bar |
| Working medium | water |
| Fluid Temperature | 0-80℃ |
| Amb. Temperature | 0-50℃ |
| Power | 4.5-5W |
| DN | Φ11 |
| Voltage |
DC12V, DC24V, DC36V, |
| Connection | (Cannula) |
(2/2way valveN.O.)

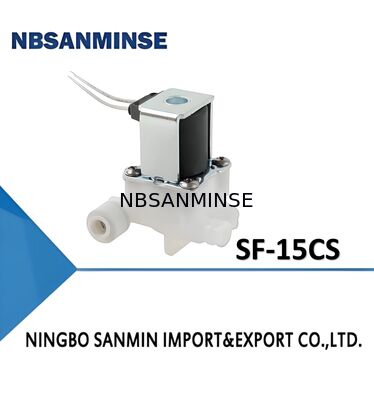

SF-15CS(Technical Parameters):
| Form |
Normally Closed |
| Pressure | 0.2-8bar |
| Working medium | water |
| Fluid Temperature | 0-80℃ |
| Amb. Temperature | 0-50℃ |
| Power | 4.5-5W |
| DN | Φ9 |
| Voltage |
DC12V, DC24V, DC36V, |
| Connection | (Cannula) |
(2/2way valveN.C.)

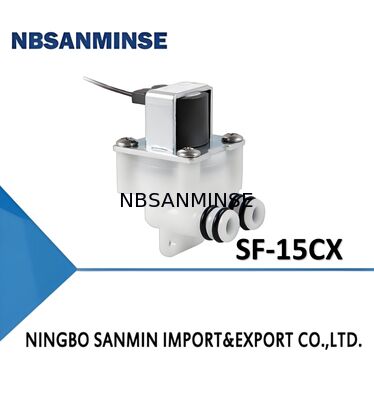

SF-15CX(Technical Parameters):
| Form |
Normally Closed |
| Pressure | 0.2-8bar |
| Working medium | water |
| Fluid Temperature | 0-80℃ |
| Amb. Temperature | 0-50℃ |
| Power | 4.5-5W |
| DN | Φ9 |
| Voltage |
DC24V |
| Connection | (Cannula) |
(2/2way valveN.C.)
