商品の詳細:
|
| 証明圧力: | 10（バール） | スイング角: | 90,180 (度) |
|---|---|---|---|
| 調整角: | ±5(度) | クッション角: | 20（度） |
| 材料: | アルミニウム | 使用温度範囲(℃): | -25+70 |
| ハイライト: | 10 bar Proof Pressure Solenoid Valve,90-180 Degrees Swing Angle Air Valve,±5 Degrees Adjustment Angle Pneumatic Solenoid Valve |
||
II. Model
| ① | Installation Form | SD,FA,FB | ||
| ② | Cylinder Bore | QGK-2 | φ20. φ25. φ32. φ40 | |
| QGK-1 | φ63,φ80,φ100,φ125 | |||
| ③ | Swing Angle | 90°,180° | ||
| ④ | Switch | code | model | |
| J | FD-21R | |||
| H | FD-19RV | |||
| A | SR1 | |||
| ⑤ | Number of Switches | 2 for standard products | ||
| ⑥ | Output Shaft Form | T | Single Shaft | |
| T₂ | Double Shaft | |||
Note: Switch SR1 is only applicable to small-sized gear-rack swing cylinders with Φ20～Φ40. Switches FD-21R and SR401 are only applicable to medium-sized gear-rack swing cylinders with Φ63～Φ125.
| Item | Basic Type (QGK-1) | Basic Type (QGK-1R) | With Switch Type (QGK-2) | With Switch Type (QGK-2R) |
| Model | QGK-1 | QGK-1R | QGK-2 | QGK-2R |
| Cylinder Bore (mm) | φ63,φ80,φ100,φ125 | φ20,φ25,φ32,φ40 | ||
| Working Pressure Range (bar) | 1～7 | 1～10 | ||
| Proof Pressure (bar) | 10 | 15 | ||
| Swing Angle (degrees) | 90,180 | |||
| Adjustment Angle (degrees) | ±5 | |||
| Rated Torque (N·m) (at 5 bar) | Φ63:34.3;Φ80:66.6;Φ100:120.5;Φ125:319 | Φ20:2;Φ25:2.8;Φ32:3.5;Φ40:5.7 | ||
| Operating Temperature Range (℃) | -25～+70 (under non-freezing conditions) | |||
| Cushioning Mechanism | Adjustable Cushioning on Both Sides | Adjustable Cushioning on One Side | ||
| Cushioning Angle (degrees) | 20 | Φ20,Φ25,Φ32:35;Φ40:32 | ||
| Lubrication | {Non-lubricated (Lubricated Optional) | |||
Note: To avoid impact caused by impact energy exceeding the absorption capacity of the cylinder cushioning device, please use a damper separately to absorb the impact energy.
| Model (with 1.5m flexible cable) | FD-21R | FD-19RV | ||
| Operating Voltage Range (V) | 5～240 DC/AC | 5～240 DC/AC | ||
| Operating Current Range (mA) | 100(max) | |||
| Maximum Contact Capacity | 10W(max) | 50W(max) | ||
| Operation Time | ||||
| Recovery Time | ||||

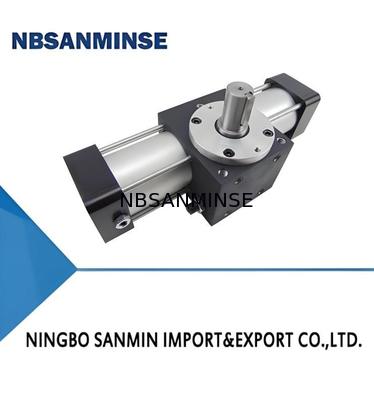

1.QGK-1 Type Medium-sized Rack and Pinion Oscillating Cylinder
SD (Basic Type)
QGKG-1T (Single Output Shaft Standard Type)
Note: Swing Angle Adjustment Method: For 90° oscillating cylinders, adjust screws ① and ③. For 180° oscillating cylinders, adjust screws ① and ②.
QGK-1RT Single Output Shaft (with Switch Type)
QGK-1T₂ (Double Output Shafts)
Outline Drawing of Single Output Shaft Type Small-sized Rack and Pinion Oscillating Cylinder
Outline Drawing of Double Output Shaft Type Small-sized Rack and Pinion Oscillating Cylinder
Note: In the table, L, L₁, and □N are the installation dimensions for double output shafts.
Dimension Table of Accessories for QGK-2 Type Small-sized Rack and Pinion Oscillating Cylinder
