商品の詳細:
|
| 使用圧力: | 1.5～8(バール) | 証明圧力: | 12（バー） |
|---|---|---|---|
| 脳卒中: | 20～200(mm) | 動作温度: | -25 ～ +80(℃) |
| ボア: | Φ40(mm) | 材料: | アルミニウム |
| ハイライト: | QGaB QGbB Model Pneumatic Air Cylinder,12 bar Proof Pressure Air Cylinder,1.5~8 bar Working Pressure Pneumatic Cylinder |
||
1.It is a derivative product of QGA and QGB series cylinders.

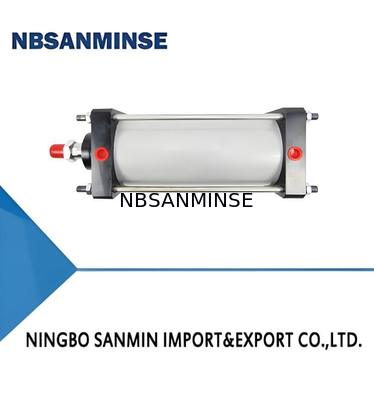

2.The piston rod diameter is larger than the standard size, with good rigidity and can bear large loads.
II. Graphical Symbols
Cylinder without Cushion
Cylinder with Cushion
III. Model
| Model | QGAb,QGBb | |||||||
| Bore (mm) | Φ40 | Φ50 | Φ63 | Φ80 | Φ100 | Φ125 | Φ160 | Φ200 |
| Stroke (mm) | 20～200 | 25～250 | 30～300 | 40～400 | 50～1000 | 63～1250 | 80～1600 | 100～2000 |
| Working Pressure (bar) | 1.5～8 | |||||||
| Proof Pressure (bar) | 12 | |||||||
| Operating Temperature Range (℃) | -25 ～ +80 (under non-freezing conditions) | |||||||
| Working Medium | Purified compressed air with oil mist | |||||||
Outline Drawing of QGAb Type Cylinder
