商品の詳細:
|
| 定格電圧: | DC24V | 保有物流れ: | 0.32 |
|---|---|---|---|
| 力: | 7.7(幅) | 作業温度。: | -5～50(℃) |
| 使用圧力: | 0.2～0.8(MPa) | ||

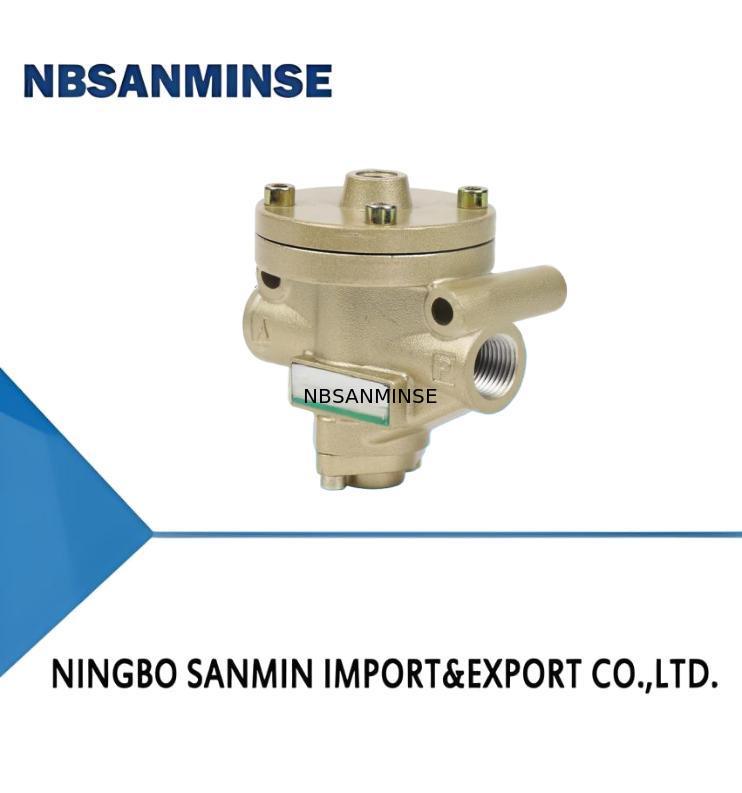

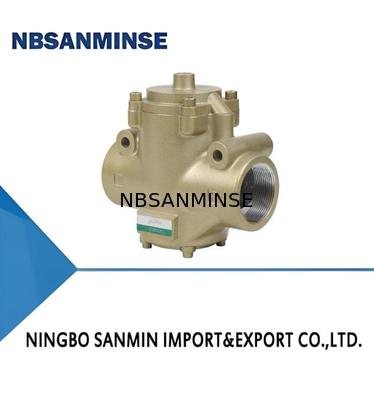

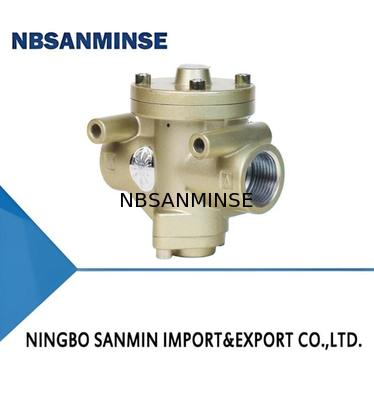

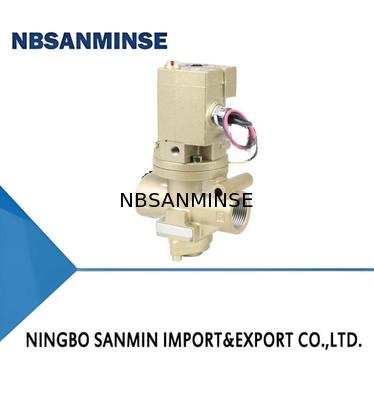

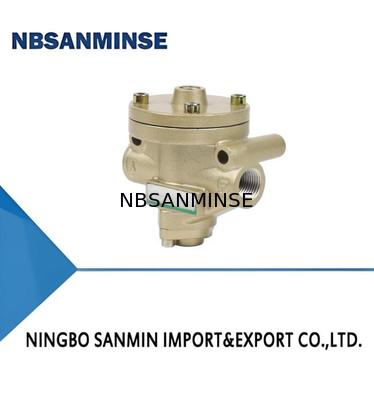

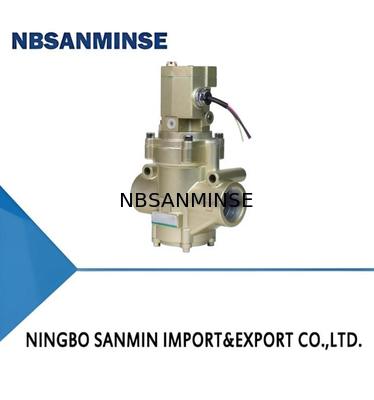

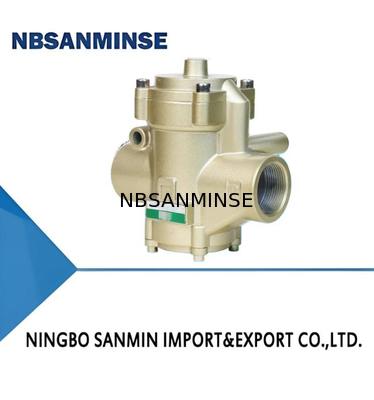

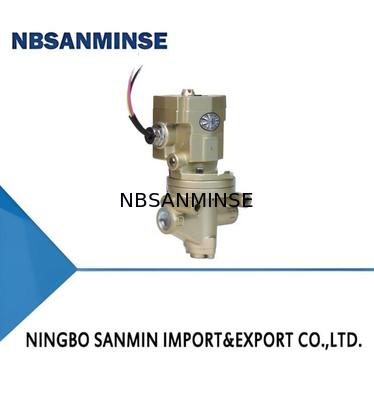

| ハイライト: | K22J-WHS poppet solenoid valve,2/2-way pneumatic solenoid valve,Poppet valve with solenoid actuator |
||
| Type | Nominal Dia | Threads G | A | B | C | D | Imperial L | φG | M | H |
| K22J1-8W | 8 | G1/4 | 169.5 | 89 | 78 | 73 | 84 | φ8.5 | 39 | 38 |
| K22J1-10W | 10 | G3/8 | 169.5 | 89 | 78 | 73 | 84 | φ8.5 | 39 | 38 |
| K22J1-15W | 15 | G1/2 | 169.5 | 89 | 78 | 73 | 84 | φ8.5 | 39 | 38 |
| K22J1-20W | 20 | G3/4 | 185 | 113 | 78 | 82 | 105 | φ8.5 | 39 | 52 |
| K22J1-25W | 25 | G1 | 185 | 113 | 78 | 82 | 105 | φ8.5 | 39 | 52 |
| K22J1-32W | 32 | G1-1/4 | 240 | 165 | 91 | 118 | 152 | φ13 | 59 | 75 |
| K22J1-40W | 40 | G1-1/2 | 240 | 165 | 91 | 118 | 152 | φ13 | 59 | 75 |
| K22J1-50W | 50 | G2 | 240 | 165 | 91 | 118 | 152 | φ13 | 59 | 75 |
| K22J1-63W | 63 | G2-1/2 | 280 | 214 | 135 | 155.5 | 240 | φ13.5 | 77 | 100 |
| Valve Type | K22JD-W | K22JD-W | K22JD-W | K22JD-W | K22JD-W | K22JD-W |
| Rated Voltage | AC100V 50HZ | AC100V 60HZ | AC110V 60HZ | AC200V 50HZ | AC200V 60HZ | AC220V 60HZ |
| Starting Current | 0.29 | 0.25 | 0.27 | 0.14 | 0.12 | 0.13 |
| Holding Current | 0.15 | 0.12 | 0.15 | 0.08 | 0.06 | 0.07 |
| Power Consumption (W) | 8 | 7 | 9 | 8 | 7 | 9 |
| Valve Type | K22JD-W |
| Rated Voltage | DC 24V |
| Holding Current | 0.32 |
| Power Consumption(W) | 7.7 |
