商品の詳細:
|
| 作業温度 (°C): | 5-40 | 定格電圧: | DC24V |
|---|---|---|---|
| 保有物流れ: | 0.32 | 力: | 7.7(幅) |
| 使用圧力: | 0.3～0.63(MPa) | ||

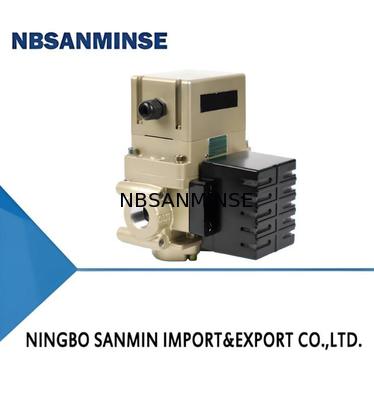

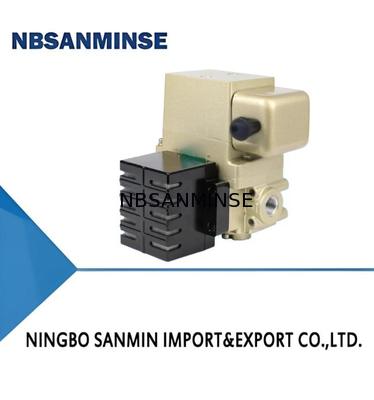

| ハイライト: | Pneumatic solenoid double valve,Press machine solenoid valve,K23JSD-HSAG series valve |
||
| Type | Nominal Dia | IN | OUT | M | N | L | G | H | F |
| K23JSD-L15W | 15 | G1/2 | G1/2 | 162 | 165 | 180 | 128 | 35 | 179 |
| K23JSD-L20W | 20 | G3/4 | G3/4 | 165 | 165 | 205 | 140 | 52 | 185 |
| K23JSD-L25W | 25 | G1 | G1 | 165 | 154 | 205 | 140 | 52 | 185 |
| Parameters | Type | K23JSD-L15W | K23JSD-L20W | K23JSD-L25W |
| Dia | 15 | 20 | 25 | |
| Port size | IN | G1/2 | G3/4 | c1 |
| OUT | G1/2 | G3/4 | G1 | |
| EX | / | / | / | |
| Range of vorking presure (Mpa) | 0.3-0.63 | |||
| Vorking tenperature(C) | 5-40 | |||
| Direction changing Tine(sec) | ≤0.01 | ≤0.012 | ≤0.012 | |
| Effective zectional area Cv(mn²) | IN OUT | 30 | 90 | 90 |
| OUT EX | 120 | 280 | 320 | |
| Valve Type | K23JSD-W | K23JSD-W | K23JSD-W | K23JSD-W | K23JSD-W | K23JSD-W |
| Rated Voltage | AC100V 50HZ | AC100V 60HZ | AC110V 60HZ | AC200V 50HZ | AC200V 60HZ | AC220V 60HZ |
| Starting Current(A) | 0.29 | 0.25 | 0.27 | 0.14 | 0.12 | 0.13 |
| Holding Current (A) | 0.15 | 0.12 | 0.15 | 0.08 | 0.06 | 0.07 |
| Power Consumption(W) | 8 | 7 | 9 | 8 | 7 | 9 |
| Valve Type | K23JSD-W |
| Rated Voltage | DC 24V |
| Holding Current | 0.32 |
| Power Consumption (W) | 7.7 |
