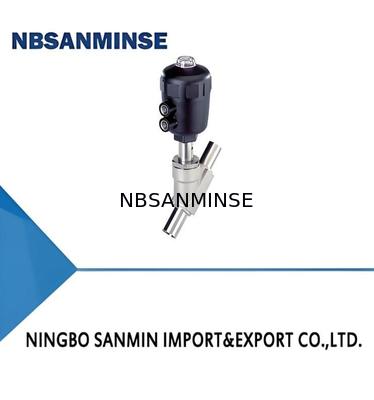

Pneumatically operated 2/2 way angle seat valve CLASSIC Stainless steel body with PPS actuator

最小注文数量 :	10pcs	パッケージの詳細 :	箱
受渡し時間 :	5-30DAYS	支払条件 :	、L/C、T/T
供給の能力 :	10000pcs

起源の場所:	中国	ブランド名:	NBSANMINSE
証明:	ISO9001	モデル番号:	PPSアクチュエータを備えたステンレス鋼のボディ

製品の説明

製品の説明

Can be combined with		Type description
	Type 8644 Remote Process Actuation Control System AirLINE	The externally piloted angle seat valve is operated with a single or double acting piston actuator. The actuator is available in two different materials, depending on the ambient temperature. High flow rates are attained with the virtually straight flow path. The reliable self–adjusting packing gland provides high sealing integrity. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, stroke limitation or manual override.
	Type 8640 Customized Pneumatic Systems Solutions for the Processing Industries
	Type 8697 Pneumatic control for decentralised automation of ELEMENT process valves
	Type 6012 Plunger valve 3/2 way direct-acting
	Type 6014 Plunger valve 3/2 way direct-acting
	Type 8840 Modular process valve cluster - distribution and collecting

1. General Technical Data

Product properties
Dimensions	More detailed infomation can befound in the chapter “6.Dimensions”on page 7.
Material	More detailed infomation can be found in the chapter"5.Materials"on page 6.
Design	Angle seat valve
Port connection size	DN10...DN80,NPS%...NPS 3
Safety setting in case of power failure	Nomally closed (control function A),nomally open (control function B)
Flow direction	Flow to open (below seat),Flow to close(aboveseat)
Performance data
Operating pressure	...25 bar(g),Vacuum up to-0.9 bar(g)(option,see "7.1.Fluidic data"on page 11
Nominal pressure	PN25(DIN EN 1333),Class 150(DIN EN 1759)
Pilot pressure	2...10 bar(g),see"7.1.Fluidic data"on page 11
K,value	3.8...140 m³/h
Media data
Medium	Steam,water,neutral gases,alcohol,oils,fuels,hydraulic fluids,salt solution,alkali solutions,organic solvents,for fuel gases of category I,Il andll aoc.to Gas Applianc- es Pegulation (EU)2016/426 and oxygen
Medium temperature	-40...230°℃,see"7.2.Operating limits"on page 15
Viscosity	Max.600 mm²/s
Control medium	Air,neutral gases
Process/Port connection &communication
Port Connections Threaded connection	G(DIN ISO 228-1) NPT IASME B1.20.1) Pc(ISO7-1)
Welded connection	DIN EN ISO1127/ISO 4200/DN11866 B DIN 118502/DIN 11866 A ASME BPE/DIN 11866 C SMS 3008
Clamp connection	DIN 32676 B(pipe ISO 4200) DIN 32676A(pipe DIN 118502) ASME BPE
Pilot air port
Actuator size 40(C)	Thread G%
Actuator size 50(D)...125(H)	Thread G4
Approvals and certificates
Confomity	Food contact 1935/2004(EG),FDA Drinking water Pressure Equipment Directive Gas Appliances Regulation Machinery Directive
Approvals	Explosion proof ATEX/IECex
Material certificate	2.2,3.1
Environment and installation
Ambient temperature	-10...140°Csee “2.Product versions”on page 4
Degree of protection	IP67
Installation position	As required,preferably with actuator upright

2.3. Stainless steel body with PPS actuator

Product properties
Nominal diameter	DN10…DN80,NPS%..….NPS3
Performance data
Operating pressure	...25 bar(g),vacuum up to-0.9 bar(g)(option),see“7.1.Fluidic data”on page 11
Maximum pilot pressure
Actuator size 40(C),50(D), 63(E),80(F),	10 bar(g)
Actuator size 100(G),125(H)	7 bar(g)
Media data
Medium temperature	-40.…230℃
Product connection
Port connection	Threaded,welded or clamp connection
Environment and installation
Ambient temperature	5...140°℃(continuous operation upto 130℃) (see“7.2.Operating limits”on page 15)
