| ハイライト: | stainless steel pressure regulating filter,filter regulator lubricator with warranty,QFRH series stainless steel filter |
||
|---|---|---|---|
| QFRH | B | 15 | N | C | H | W |
| serial number | pressure | takeover caliber | Pipe mouth screw thread | filtration accuracy | drainage method | Windows |

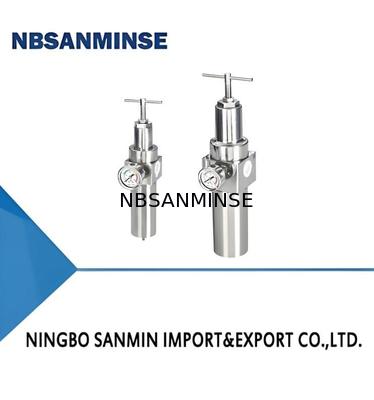

| Stainless steel pressure regulating filter | Blank: 12-28kgf/cm | 08:G1/4" | Blank: G | PE filter cartridge | Blank semi-automatic drainage | Blank: None |
| B:0.5-12kgf/cm2 | 10:G3/8" | N:NPT | Blank: 5 μ m | H: Manual drainage | ||
| 15:G1/2" | R:Rc | C:40um | D: Automatic drainage | |||
| 20:G3/4" | ||||||
| 25:G1" |
| model | QFRH-08 | QFRH-10 | QFRH-15 | QFRH-20 | QFRH-25 |
| The uses a fluid | Compressed air | ||||
| Connection Bore | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Pressure Regulation Structure | Piston Type | ||||
| Body Material | Stainless Steel SUS316 | ||||
| Cup Material | Stainless Steel SUS316 | ||||
| Pressure Gauge Material | Shell: Stainless Steel SUS304; Thread: Stainless Steel SUS316 | ||||
| Operating Pressure | QFRHB:0.5-12kgf/cm²,QFRH:12~28kgf/cm² | ||||
| Maximum Inlet Pressure | 60kgf/cm² | ||||
| Maximum Flow Rate(Vmin)(ANR) | 2200 | 2500 | 3800 | B8500/17000 | B8900/21000 |
| Ambient Temperature | -10-70℃ | ||||
| Filter Cup Capacity | 100cc | 200cc | |||
| Standard Drainage | Semi-automatic (requires draining below 0.5kgf/cm²) | ||||
| Auxiliary Accessories | Pressure Gauge (0~40kg), Plug | ||||
| Optional | Pressure Gauge (0~40kg), Pressure Gauge (0~60kg) | ||||
