| 最小注文数量 : | 10pcs | 価格 : | 交渉可能 |
|---|---|---|---|
| パッケージの詳細 : | 箱 | 受渡し時間 : | 5-30DAYS |
| 支払条件 : | L/C、T/T | 供給の能力 : | 10000pcs |
| 起源の場所: | 中国 | ブランド名: | NBSANMINSE |
|---|---|---|---|
| 証明: | ISO9001 | モデル番号: | QTYHB15N |

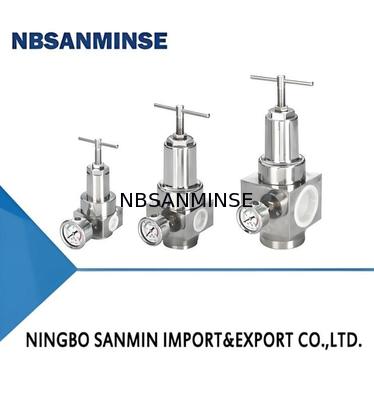

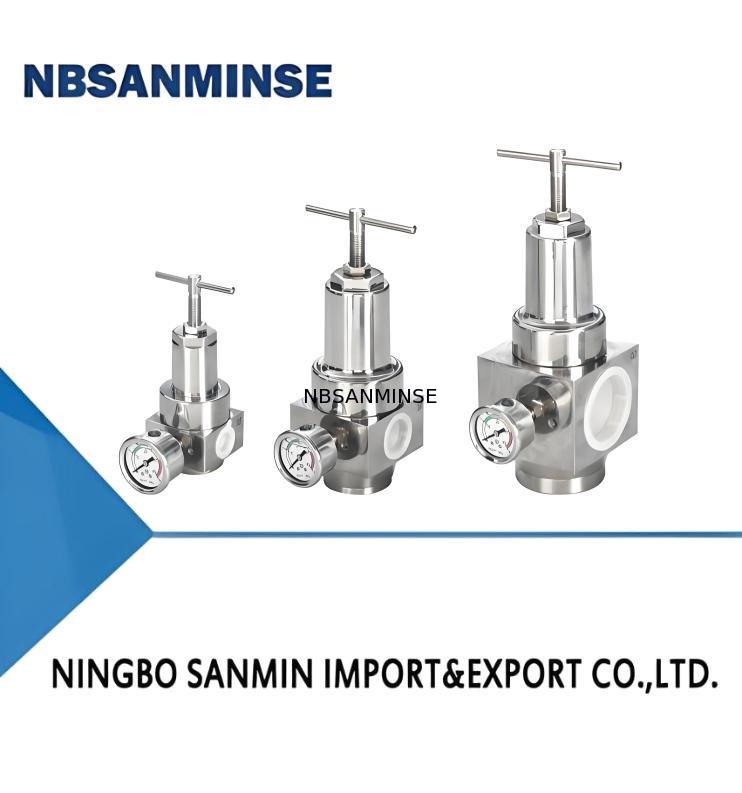

製品の説明
| model | QTYH-08 | QTYH-10 | QTYH-15 | QTYH-20 | QTYH-25 | QTYH-32 | QTYH-40 | QTYH-50 |
| Using fluids | compressed air | |||||||
| takeover caliber | G1/4 | G3/8 | G1/2 | G3/4 | G1 | G13/8 | G11/2 | G2 |
| Pressure regulating structure | piston-type | |||||||
| body material | Stainless steel SUS316 | |||||||
| Pressure gauge material | Shell made of stainless steel SUS304, teeth made of stainless steel SUS316 | |||||||
| Operating pressure | QTYHB:0.5-12kgf/cm2, QTYH:12-28kgf/cm2 | |||||||
| Maximum intake pressure | 60kgf/cm2 | |||||||
| ambient temperature | -10-70°C | |||||||
| Accessory parts | Pressure gauge (0-40kg), plug | |||||||
| optional | Pressure gauge (0~40kg), pressure gauge (0~60kg) | |||||||
| QTYH | B | 15 | N |
| serial number | pressure | takeover caliber | Pipe mouth screw thread |
| Stainless steel pressure reducing valve | Blank: 12-28kgf/cm | 08:G1/4;25:G1" | Blank: G |
| B:0.5-12kgf/cm2 | 10:G3/8;32:G13/8 | N:NPT | |
| 15:G1/2";40:G11/2 | R:Rc | ||
| 20:G3/4;50:G2 |
