商品の詳細:
|
| 推奨ホース径: | 4.mm | 直径: | 4 - φ4mm |
|---|---|---|---|
| 材質と硬度: | N-NBR | 綴込: | 0.6力N |
| 接続スレッド: | ニール - 吸管のみ | ||

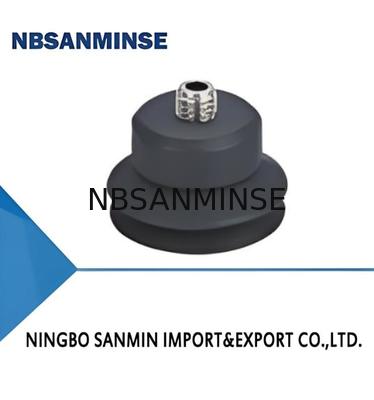

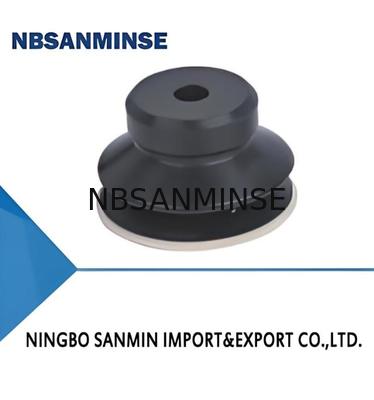

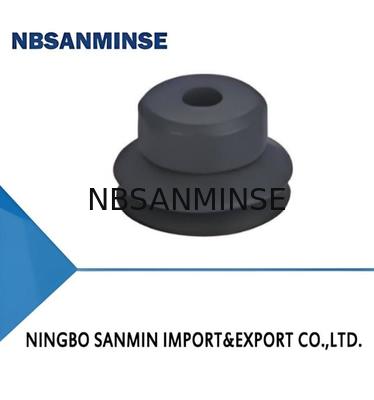

| ハイライト: | SPJ シリーズ ベローズ 吸い込みカップ,空気圧ソレノイドバルブ吸盤,保証付きベローズ吸盤 |
||
| モデル | 引き出す 力 N |
内側 容量 cm3 |
ミンカーブ 半径 について 工件 mm |
体重 g |
推奨 ストロー ダイア mm |
MPQ pcs |
| SPJ4 | 0.6 | <0.1 | 4 | 0.1 | 4 | 10 |
| SPJ6 | 1.2 | <0.1 | 6 | 0.2 | 4 | 10 |
| SPJ8 | 2.2 | <0.1 | 8 | 0.3 | 4 | 10 |
| SPJ10 | 3.5 | 0.2 | 12 | 0.8 | 4 | 10 |
| SPJ15 | 8 | 0.5 | 20 | 1.0 | 6 | 10 |
| SPJ20 | 15 | 1.1 | 27 | 1.8 | 6 | 5 |
| SPJ25 | 24 | 2.2 | 40 | 3.0 | 6 | 5 |
| SPJ30 | 32 | 3 | 55 | 5.3 | 6 | 5 |
| SPJ35 | 43 | 4.5 | 65 | 8.0 | 6 | 5 |
| SPJ40 | 60 | 6 | 80 | 10.5 | 6 | 1 |
| SPJ50 | 92 | 11.7 | 95 | 21.0 | 8 | 1 |
| SPJ60 | 127 | 20 | 125 | 35.6 | 8 | 1 |
| SPJ70 | 173 | 30 | 150 | 52.5 | 8 | 1 |
| SPJ80 | 226 | 40 | 140 | 63.0 | 8 | 1 |
| モデル | バキュームポート方向 垂直パゴダの装着 |
横のパゴダのフィッティング |
| SPJ6□ | SPJ6□-B6-M8M | SPJ6□-LB6-M4F |
| SPJ8□ | SPJ8□-B6-M8M | SPJ8□-LB6-M4F |
| SPJ10□ | SPJ10□-B6-M8M | SPJ10□-LB6-M4F |
| SPJ15□ | SPJ15□-B6-M8M | SPJ15□-LB6-M4F |
| SPJ20□ | SPJ20□-B6-M8M | SPJ20□-LB6-M4F |
| SPJ25□ | SPJ25□-B6-M10M | SPJ25□-LB6-M6F |
| SPJ30□ | SP30□-B6-M10M | SPJ30□-LB6-M6F |
| SPJ35□ | SP35□-B6-M10M | SPJ35□-LB6-M6F |
| SPJ40□ | SP40□-B6-M10M | SPJ40□-LB6-M6F |
| SPJ50□ | SPJ50□-B6-M10M | SPJ50□-LB6-M6F |
| SPJ60□ | SPJ60□-R1-M16M | SPJ60□-LR1-M8F |
| SPJ70□ | SPJ70□-R1-M16M | SPJ70□-LR1-M8F |
| SPJ80□ | SPJ80□-R1-M16M | SPJ80□-LR1-M8F |
| モデル | バキューム 港 方向性 垂直パゴダの装着 |
横のパゴダの装着 | ||
| SPJ6□ | SPJ6□-FE3B6-M9 | SPJ6□-FE10B6-M9 | SPJ6□-FE3LB6-M9 | SPJ6□-FE10LB6-M9 |
| SPJ8□ | SPJB□-FE3B6-M9 | SPJB□-FE10B6-M9 | SPJ8□-FE3LB6-M9 | SPJ8□-FE10LB6-M9 |
| SPJ10□ | SPJi0□-FE4B6-M11 | SPJ10□-FE10B6-M11 | SPJ10□-FE4LB6-M11 | SPJ10□-FE10LB6-M11 |
| SPJ15□ | SPJ15□-FE4B6-M11 | SPJ15□-FE10B6-M11 | SPJ15□-FE4LB6-M11 | SPJ15□-FE10LB6-M11 |
| SPJ20□ | SPJ20□-FE4B6-M11 | SPJ20□-FE10B6-M11 | SPJ20□-FE4LB6-M11 | SPJ20□-FE10LB6-M11 |
| SPJ25□ | SPJ25□-FE6B6-M14 | SPJ25□-FE15B6-M14 | SPJ25□-FE6LB6-M14 | SPJ25□-FE15LB6-M14 |
| SPJ30□ | SPJ30□-FE6B6-M14 | SPJ30□-FE15B6-M14 | SPJ30□-FE6LB6-M14 | SPJ30□-FE15LB6-M14 |
| SPJ35□ | SPJ35□-FE6B6-M14 | SPJ35□-FE15B6-M14 | SPJ35□-FE6LB6-M14 | SPJ35□-FE15LB6-M14 |
| SPJ40□ | SPJ40□-FE6B6-M14 | SPJ40□-FE15B6-M14 | SPJ40□-FE6LB6-M14 | SPJ40□-FE15LB6-M14 |
| SPJ50□ | SPJ50□-FE6B6-M14 | SPJ50□-FE15B6-M14 | SPJ50□-FE6LB6-M14 | SPJ50□-FE15LB6-M14 |
| SPJ60□ | - | SPJ60□-FE10LR1-M16 | SPJ60□-FE30LB6-M16 | |
| SPJ70□ | - | SPJ70□-FE10LR1-M16 | SPJ7O□-FE30LB6-M16 | |
| SPJ80□ | - | SPJ80□-FE10LR1-M16 | SPJB0□-FE30LB6-M16 | |
