商品の詳細:
|
| コード: | TL103-15 TL103-20 | サイズ（mm）: | D1 1/2 インチ 3/4 インチ |
|---|---|---|---|
| 部品名: | バルブボディ 密封要素のハンドル | 材料: | 銅 PTFE |
| 公称圧力: | 0.6MPa | 耐久性試験 圧力: | 1.0mpa |
| 密封試験圧力: | 0.6MPa | 動作温度: | ≤200℃ |
| 作業媒体: | 水、蒸気、オイル | ||
| ハイライト: | D1 1/2 液体レベル計,液体レベル計密封要素,3つのハンドル液体レベル計 |
||

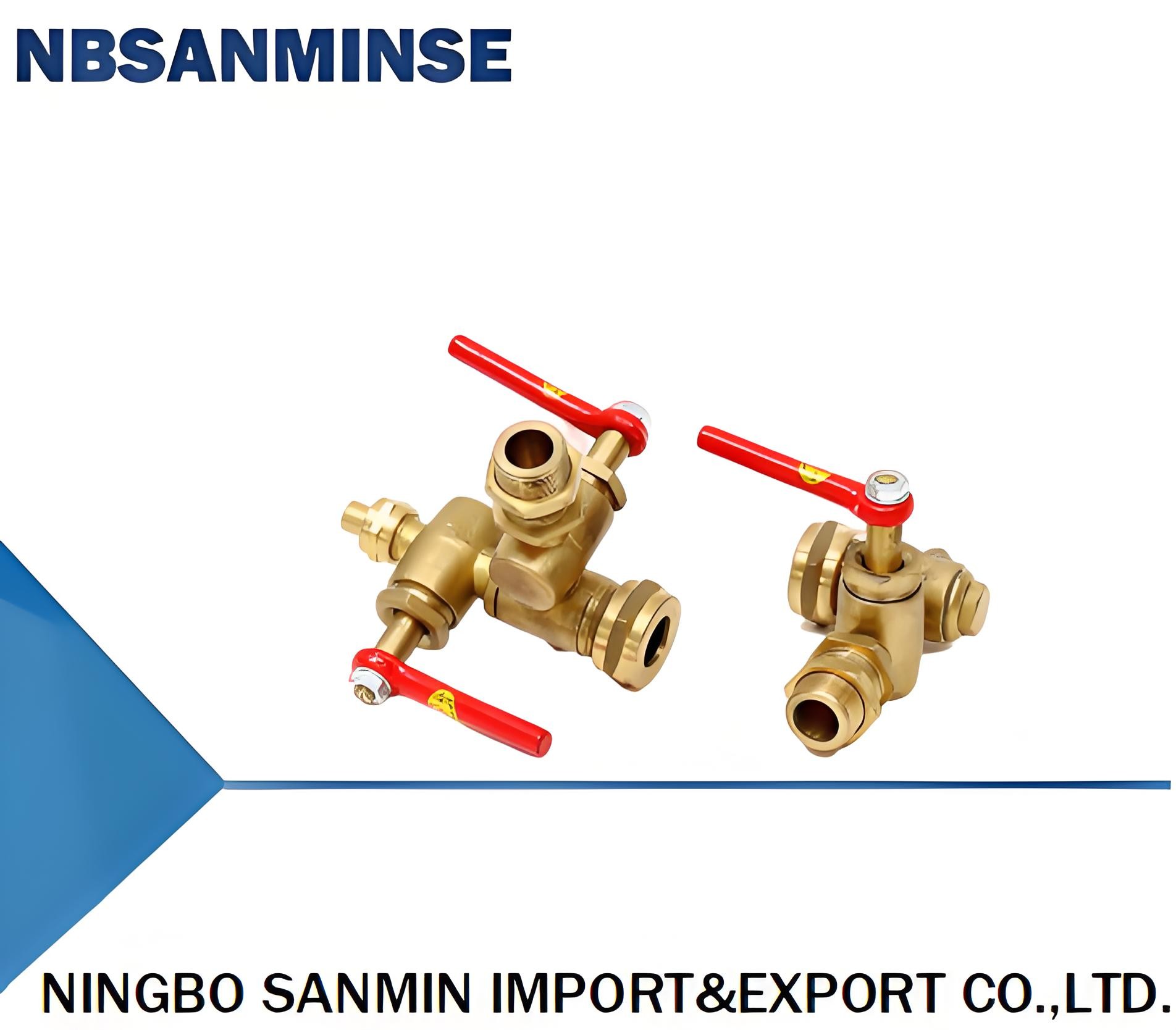

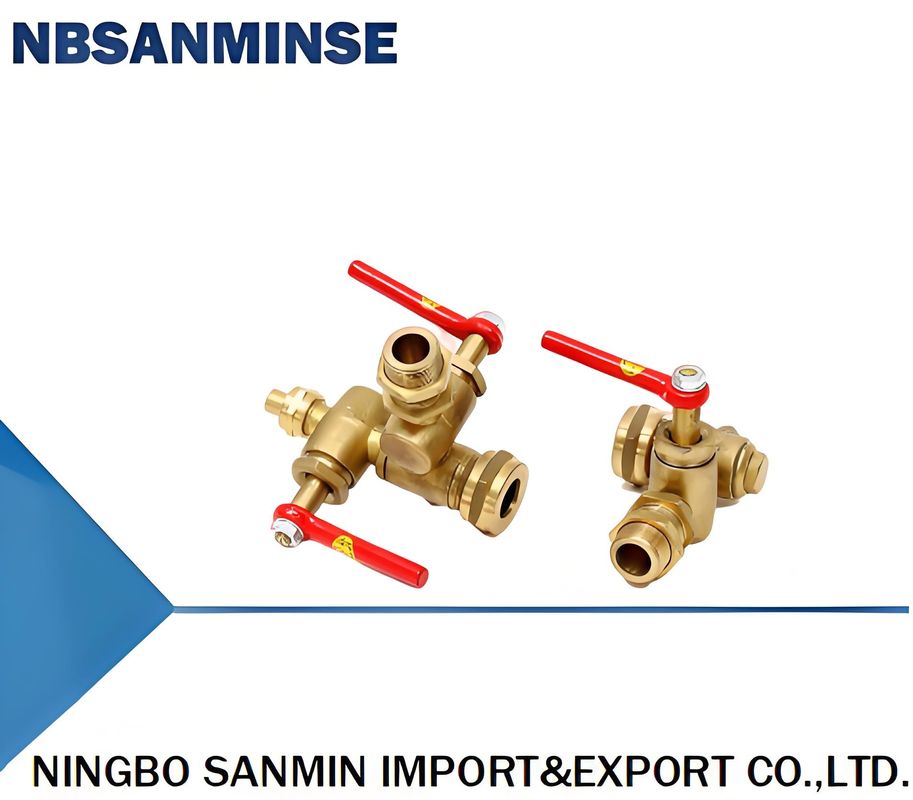

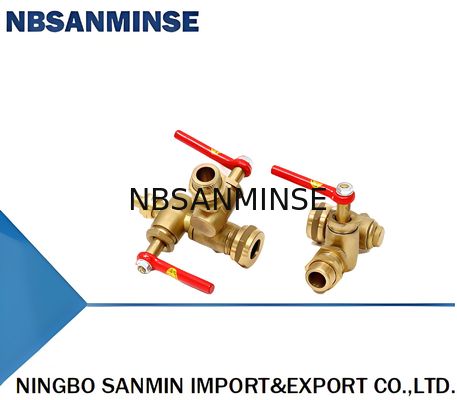

This level gauge (also known as a water level gauge) is suitable for water, steam, and reservoirs with a working temperature t ≤ 200 ℃, and is used to indicate the level of liquid through a glass tube. 103 X29F-6T type code: 103 X29F-6T type (three handles/pair) water level gauge main parts material part name material valve body brass seal polytetrafluoroethylene (plastic king) handle forged steel main technical parameters nominal pressure PN0.6MPa strength test pressure 1.0 sealing test pressure 0.6 working temperature ≤ 200 ℃ working medium: water, steam, oil
| code | size(mm) | Part name | material | |||
| D1 | D2 | L1 | L2 | valve body | brass | |
| TL103-15 | 1/2" | 14 | 87 | 25 | Sealing element | PTFE |
| TL103-20 | 3/4" | 19 | 95 | 30 | handle | forged steel |
| Nominal pressure | 0.6Mpa | |||||
| strength test pressure | 1.0Mpa | |||||
| Seal test pressure | 0.6Mpa | |||||
| operation temperature | ≤200℃ | |||||
| Working medium | Water, steam, oil | |||||
