| 起源の場所: | 中国 | ブランド名: | NBSANMINSE |
|---|---|---|---|
| モデル番号: | 306 |
|
詳細情報 |
|||
| コード: | 306 | 糸 G1: | 半インチ |
|---|---|---|---|
| 圧力計のスレッド G2: | M20x1.5 | サイズ (mm): | L80 H68 R80 |
| 定数圧力: | 1.6MPa | 耐久性試験 圧力: | 2.4MPa |
| 密封試験圧力: | 1.6MPa | 操作温度: | ≤150°C |
| 作業介質: | 水、蒸気、オイル | 材料: | 青銅 |
| ハイライト: | 1.6Mpa 三方向バルブ,圧力計 三道バルブ,1.6Mpa 1 2銅電磁弁 |
||
製品の説明

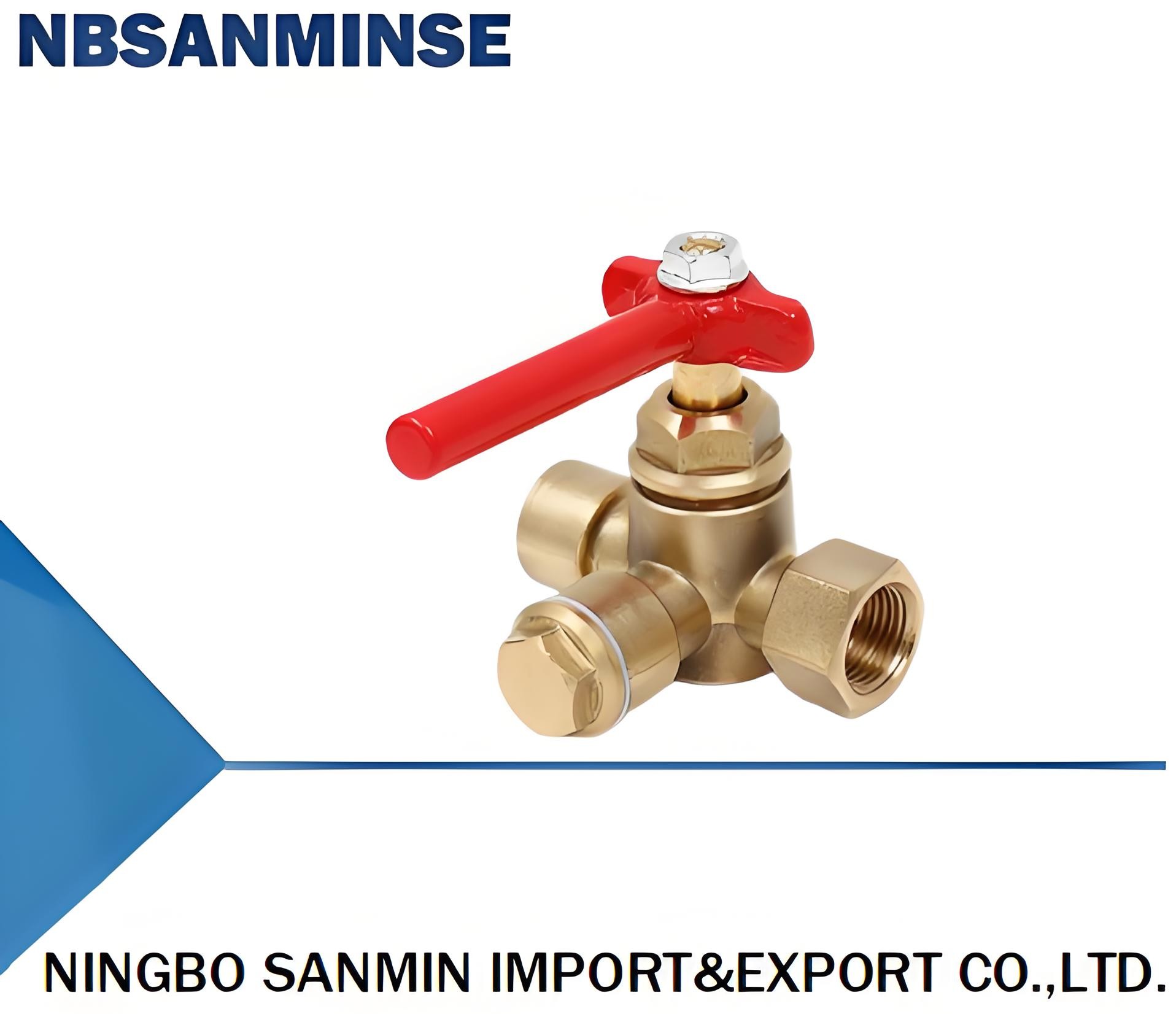

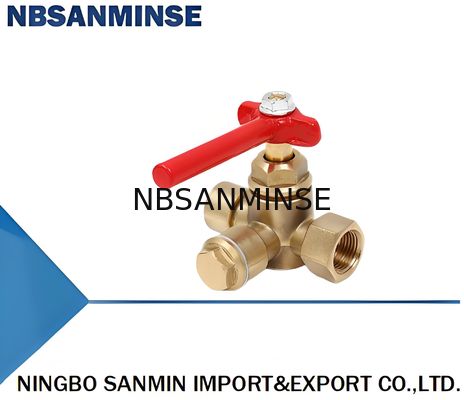

The three-way valve of the 306 pressure gauge can be directly connected to the pressure gauge and is generally used for sealing small flow, high pressure gas or liquid (such as steam, oil) media. Widely used in power plants, steel plants, petroleum, and chemical industries. The pressure gauge three-way valve has the advantages of easy installation and disassembly, tight connection, high fire and explosion resistance, high pressure resistance, and good sealing performance. It is an advanced connection method valve in power plants, oil and chemical equipment, and instrument measurement pipelines.
| code | thread G1 | Pressure gauge thread G2 | size(mm) | ||
| L | H | R | |||
| 306 | 1/2" | M20x1.5 | 80 | 68 | 80 |
| Nominal pressure | 1.6Mpa | ||||
| strength test pressure | 2.4Mpa | ||||
| Seal test pressure | 1.6Mpa | ||||
| operation temperature | ≤150℃ | ||||
| Working medium | Water, steam, oil | ||||
