| 起源の場所: | 中国 | ブランド名: | NBSANMINSE |
|---|---|---|---|
| モデル番号: | 503DN6 503DN10 503DN15 503DN20 |
|
詳細情報 |
|||
| コード: | 503DN6 503DN10 503DN15 503DN20 | 材料: | 青銅 |
|---|---|---|---|
| 圧力範囲: | 0.3Mpa | 温度: | ≤200℃ |
| 装置の圧力: | 0.6Mpa | ||
| ハイライト: | 移動可能な銅直口プラグ,多用性のある銅直口プラグ,銅の直口プラグ |
||
製品の説明

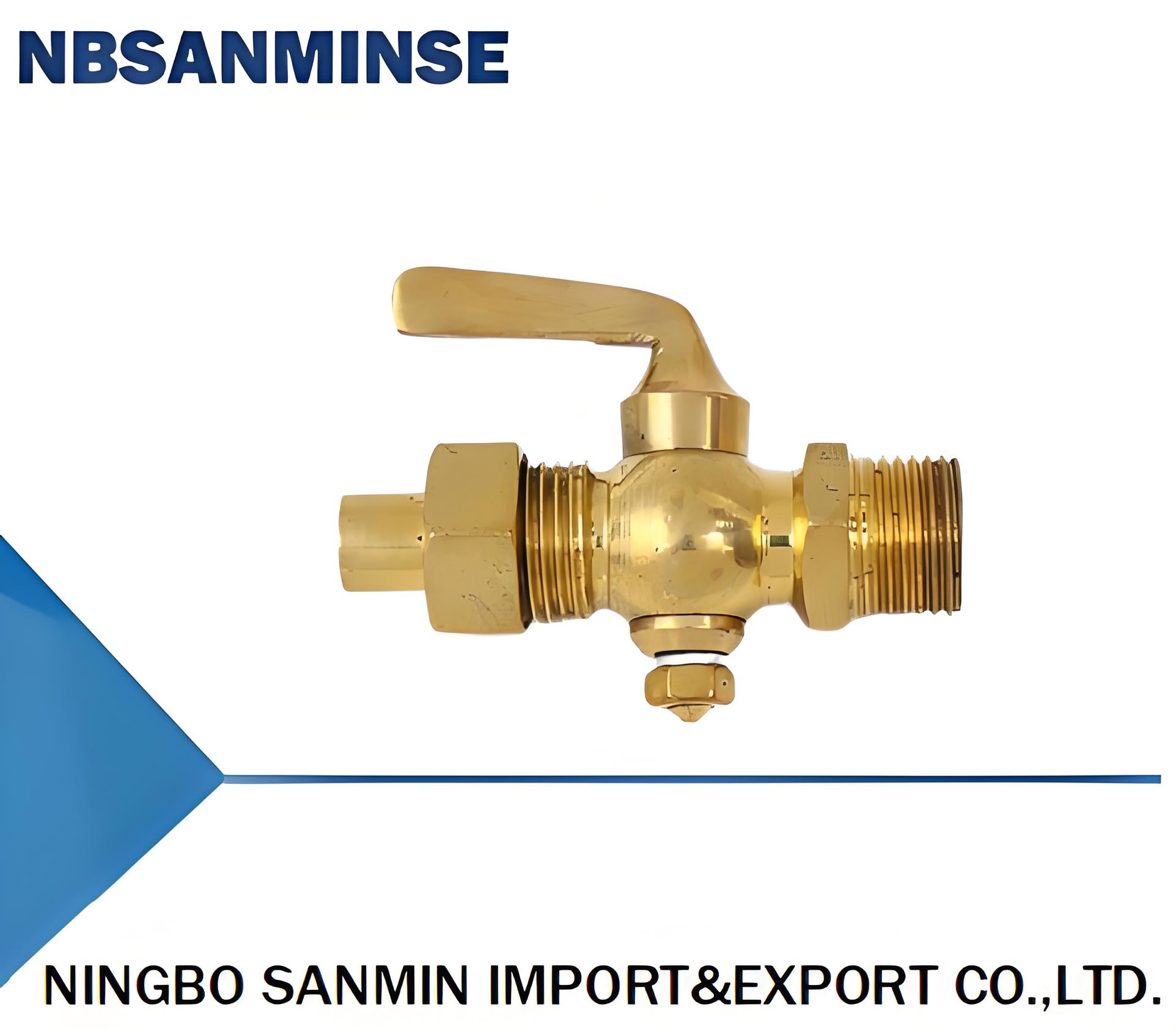

Code: 503 Copper Straight Mouth Plug (with Flexible Joint) Product Model: DN6 DN10 DN15 DN20 Main Material: Brass Pressure Range: 0.3 (Mpa) Channel Form: Straight through Structural Form: Self sealing Plug Valve Installed on Equipment for Water or Steam Discharge. Can connect pipes to release steam, water, oil and other media from the equipment to a distance. The valve body and sealing surface are made of copper alloy, suitable for temperatures ≤ 200 ℃ and equipment pressure PN0.6MPa.
| Code | Material | Pressure Range | Temperature | Equipment pressure |
| 503-DN6 | brass | 0.3Mpa | ≤200℃ | 0.6Mpa |
| 503-DN10 | ||||
| 503-DN15 | ||||
| 503-DN20 |
